16mm2 25mm2 Flexible Rubber Sheath Welding Cables

  • 16mm2 25mm2 Flexible Rubber Sheath Welding Cables
  • 16mm2 25mm2 Flexible Rubber Sheath Welding Cables
  • 16mm2 25mm2 Flexible Rubber Sheath Welding Cables
  • 16mm2 25mm2 Flexible Rubber Sheath Welding Cables
Model No.︰-
Brand Name︰HBFA
Country of Origin︰China
Unit Price︰CNY ¥ 1 / pc
Minimum Order︰1 pc
Share on:

 Total 14 Related Items
Prev12345Next

Product Description

Characteristics
1. Rated power-frequency voltage U0/U: 450/750V, 300/500V and 300/300V.
2. Maximum permitted operating temperature of conductor is 60°C.
3. Permitted lowest working temperature is -35°C.
4. Rubber cable can be used at places contaminated by mineral oil and fuel oil.
5.  D>25mm
The minimum bending radius is over 6 times of cable diameter.
D≤25mm
The minimum bending radius is over 4 times of cable diameter.
   (D-Diameter of the cable)



Specification

Type Name
YQ   Rubber insulated NR/SBR rubber sheathed flexible cables (wires) for light duty
YQW Rubber insulated neoprene rubber sheathed flexible cables (wires) for light duty
YZ Rubber insulated NR/SBR rubber sheathed flexible cables (wires) for middle duty
YZW Rubber insulated neoprene rubber sheathed flexible cables (wires) for middle duty
YC Rubber insulated NR/SBR rubber sheathed flexible cables (wires) for heavy duty
YCW Rubber insulated neoprene rubber sheathed flexible cables (wires) for heavy duty
YH Rubber sheathed arc welding cable
THF Rubber sheathed arc welding cable


Note: suffix W means cable has the properties of weather and oil resistance, suitable for the places outdoors
and contaminated by the oil.



Rubber Cable Specification Range:


Type

Rated Voltage

Core Number
Nominal Cross-section Area
YQ,YQW 300/300 2.3 0.3~0.5
YZ,YZW 300/500 2.3.4.5.3+1 1.5~6

YC

450/750
1
2
3
4
5
1.5~240
1.5~95
1.5~150
1.5~25


IEC 245-53,IEC 245-66,designing and manufacturing special power cable according to the other standards required by the customer.

Name Rated Voltage No. of Core Nominal Section Area Application
- V - mm2 -
Light-type Rubber Sheathed Flexible Cable 300/500 2,3 0.3-0.5
2,3,4,5
For portable electrical instruments,equipments and tools;
Medium-type Rubber Sheathed Flexible Cable 300/500 2,3,4,5 0.75-6 For portable electrical instruments,equipments and tools; affording larger external forces
3+1 1.5-6
Heavy-type Rubber Sheathed Cable 450/750 1 1.5-400 For portable electrical instruments,equipments,affording larger external force, weather-resistance and oil-resistance;
2 1-95
3,4 1-150
5 1-25
3+1 1.5-150

Sincerely welcome to inquiry to get more details.

Summer +86-15917022867

summer_jiang7307@foxmail.com

Payment Terms︰TT

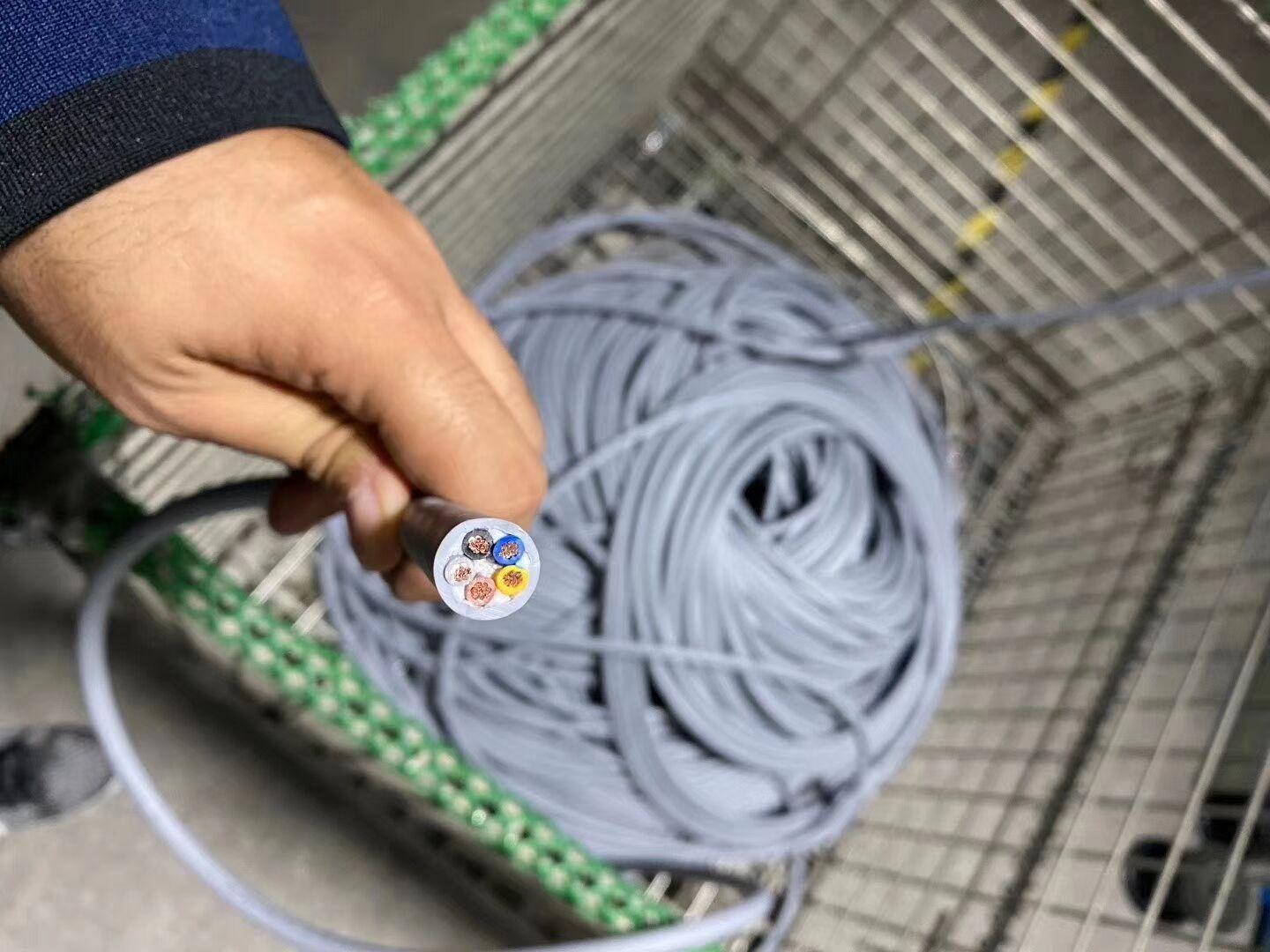

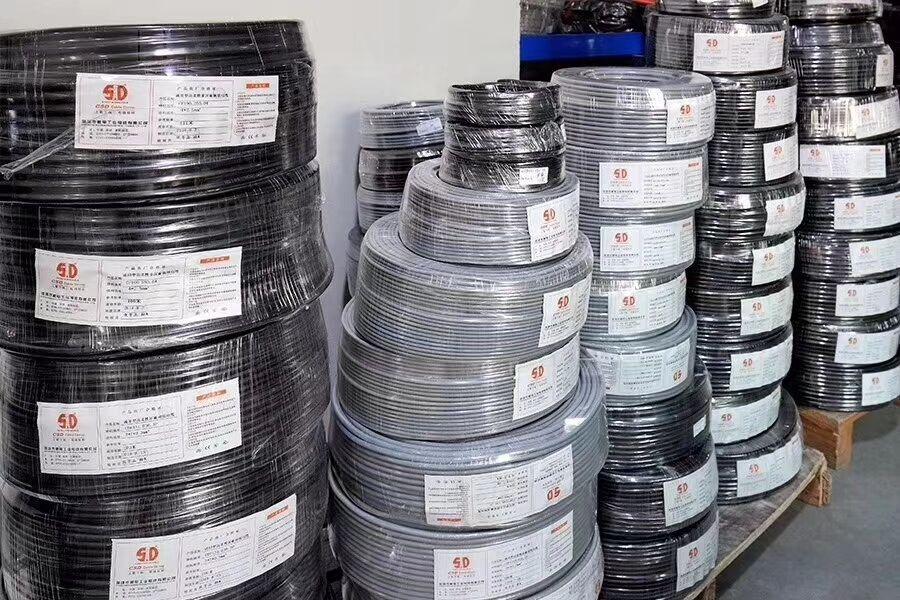

Product Image
