Models FY101 and YDF101

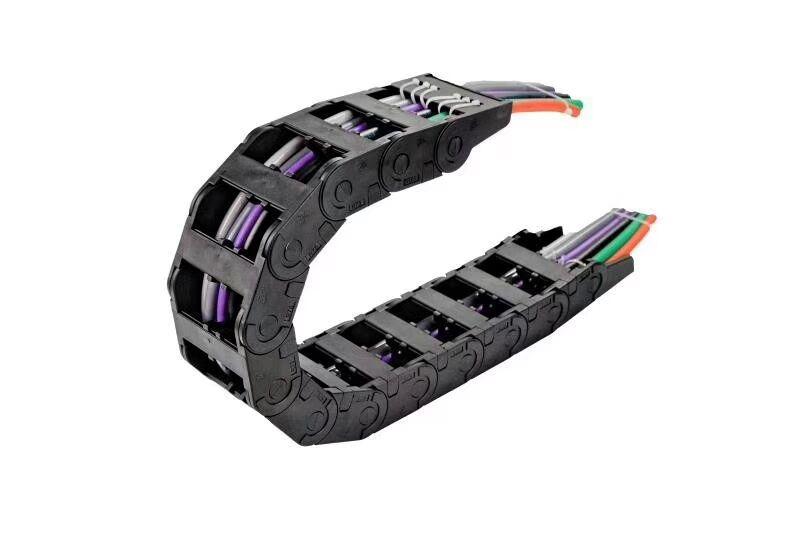

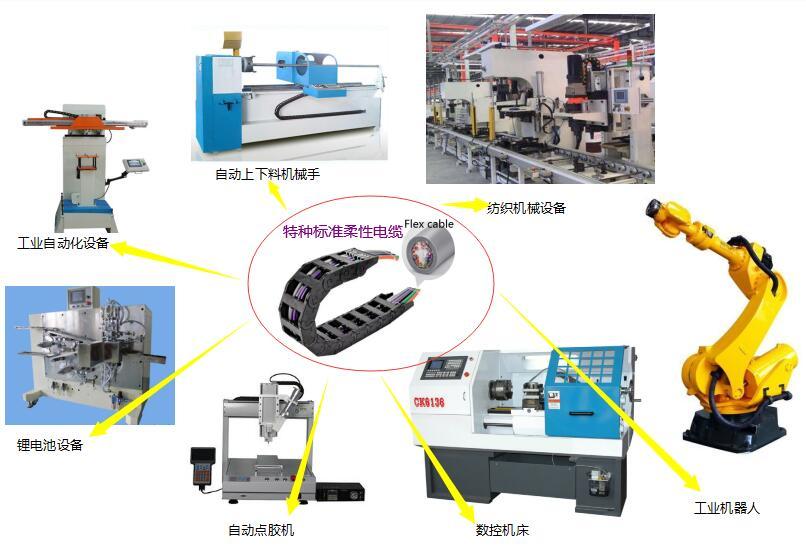

Flexible bending resistant cable is bending resistant, zigzag resistant, bending resistant and highly flexible. Flexible bend resistant cable is suitable for mobile environment. Cable flame retardant and oil resistant. Suitable for medium speed mobile use. We have carried out tens of millions of drag chain tests in the laboratory to ensure safety and prevent failure.
High flexibility shielded cables YF101 and YDF101
Mobile performance
Small bending radius (in drag chain) 10xd
Small bending radius (fixed installation) 7.0xd
Service temperature (in drag chain) - 5 ° C to + 70 ° C
Service temperature (fixed installation) - 15 ° C to + 70 ° C
Running speed 3m / S
Acceleration 20 m / S
Drag chain travel can support 10 meter long drag chain applications
Electrical performance
Rated voltage 300 / 500V
Test voltage 2000V
Cable structure
Conductor fine wire multi strand fine stranded bare copper wire
Core insulation mixed PVC
Core structure the core wires are twisted together at short pitch
Core identification black core + white number differentiation
Total shielding high bending resistant tinned copper wire braided shield
Outer sheath mixed PVC
Sheath color gray (other colors can be customized)
