Model CDF131
High flexible encoder cable is suitable for pulse high frequency encoder controller. High flexible encoder cable is suitable for all kinds of servo coding controllers. Cable flame retardant and oil resistant. Suitable for high-speed mobile use. We have carried out tens of millions of drag chain tests in the laboratory to ensure safety and prevent failure.

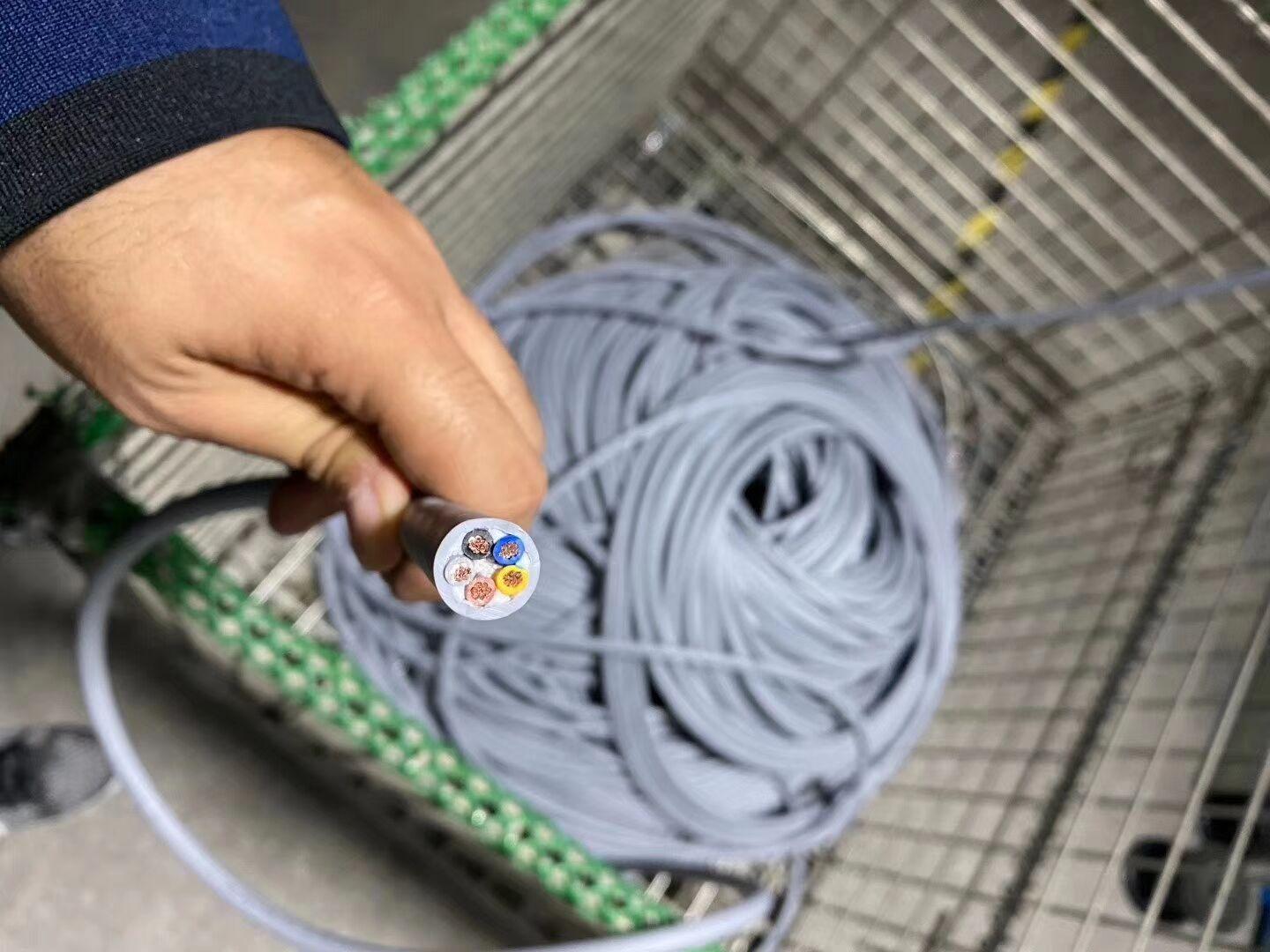

High flexibility shielded cable CDF131
Mobile performance:
Small bending radius (in drag chain): 7.5Xd
Small bending radius (fixed according to): 4.0Xd
Service temperature (in drag chain): - 5 ° C to + 70 ° C
Operating temperature (fixed installation): - 15 ° C to + 70 ° C
Running speed: 3m / S
Acceleration: 50M / s ²

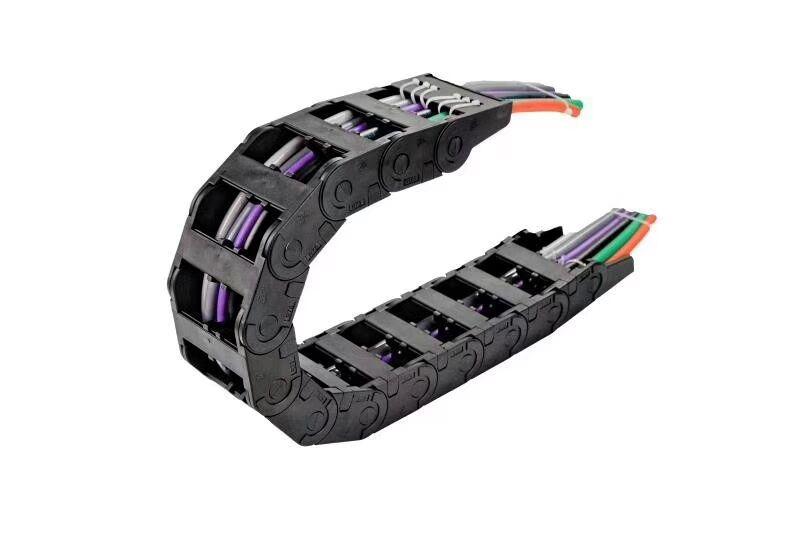

Drag chain travel: can support 50 meter long drag chain application
Electrical performance:
Rated voltage: 300 / 300V
Test voltage: 1500V
Cable structure:
Conductor: ultra fine stranded bare copper wire
Core insulation: PE
Core structure: short pitch stranded 2-core (pair)
Core identification: color discrimination
Inner sheath: mixed PVC (customized for follow-up)
Total shield: high bending resistance tinned copper wire braid shield. The density is about 85%.
Outer sheath: mixed PVC
Sheath color: gray (other colors can be customized)
